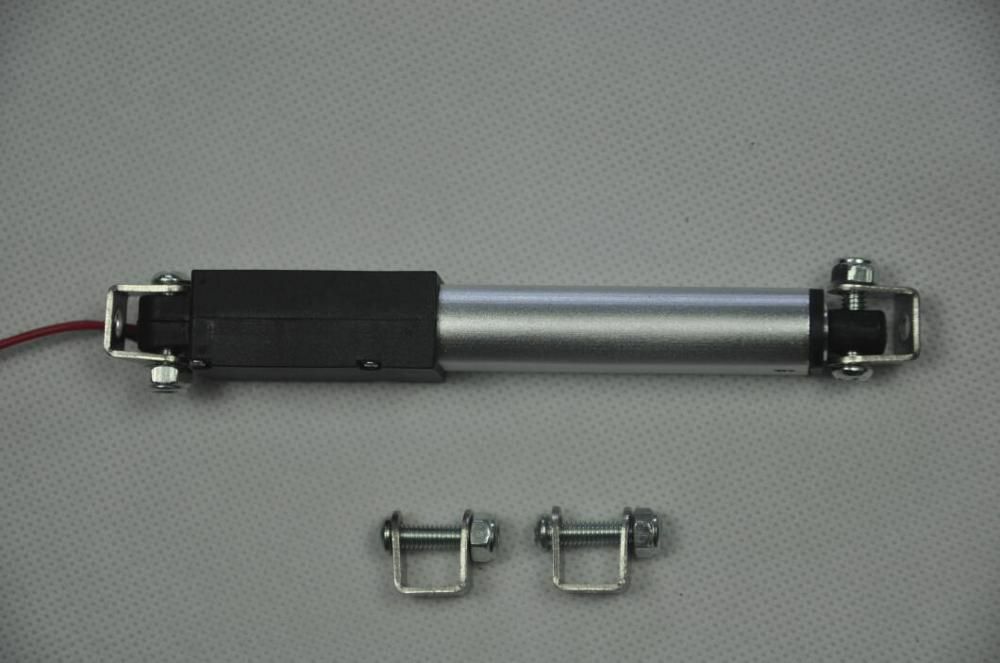

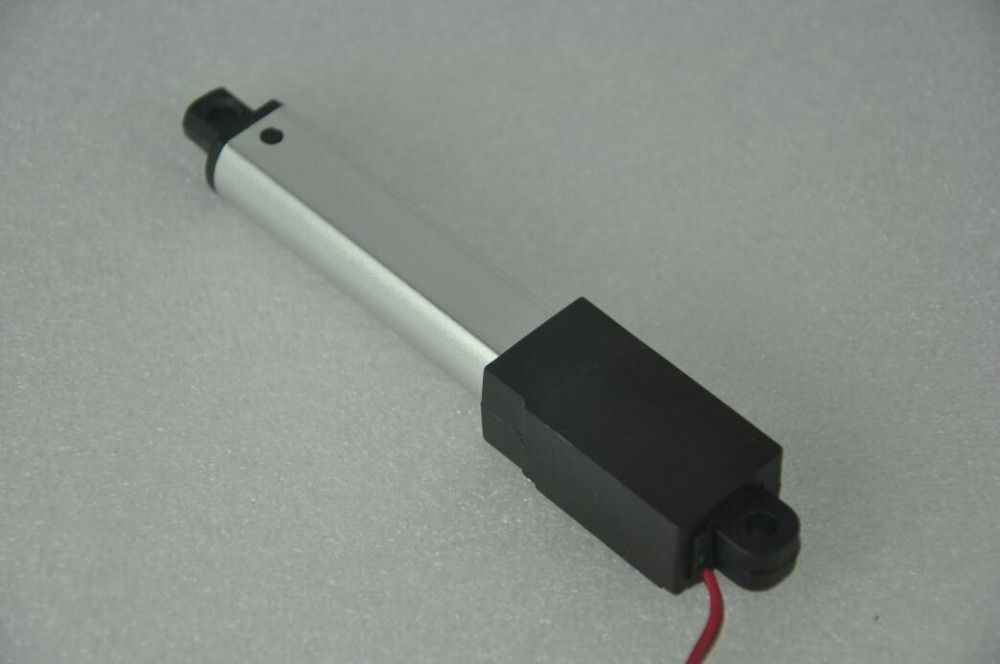

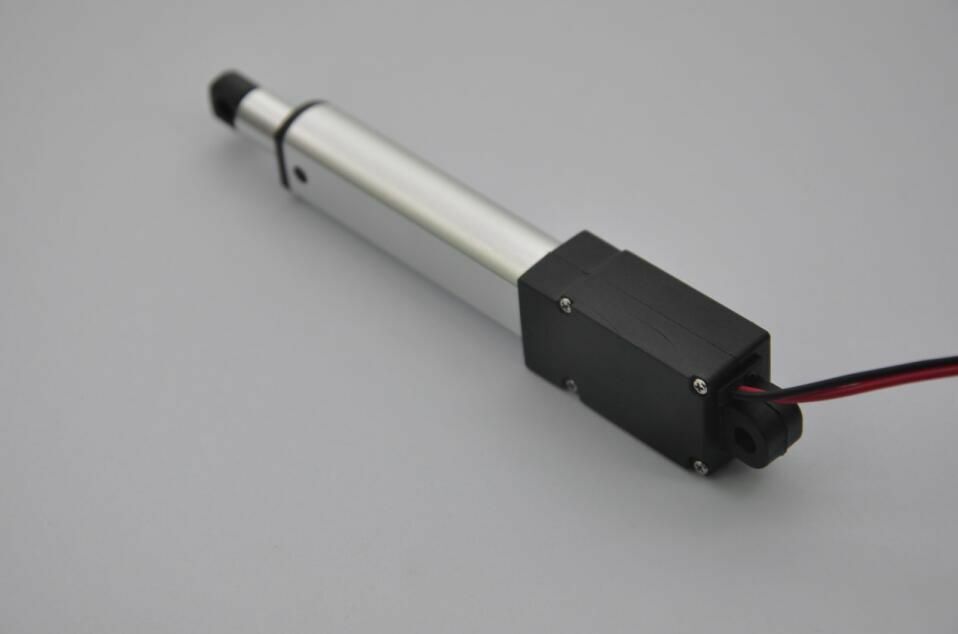

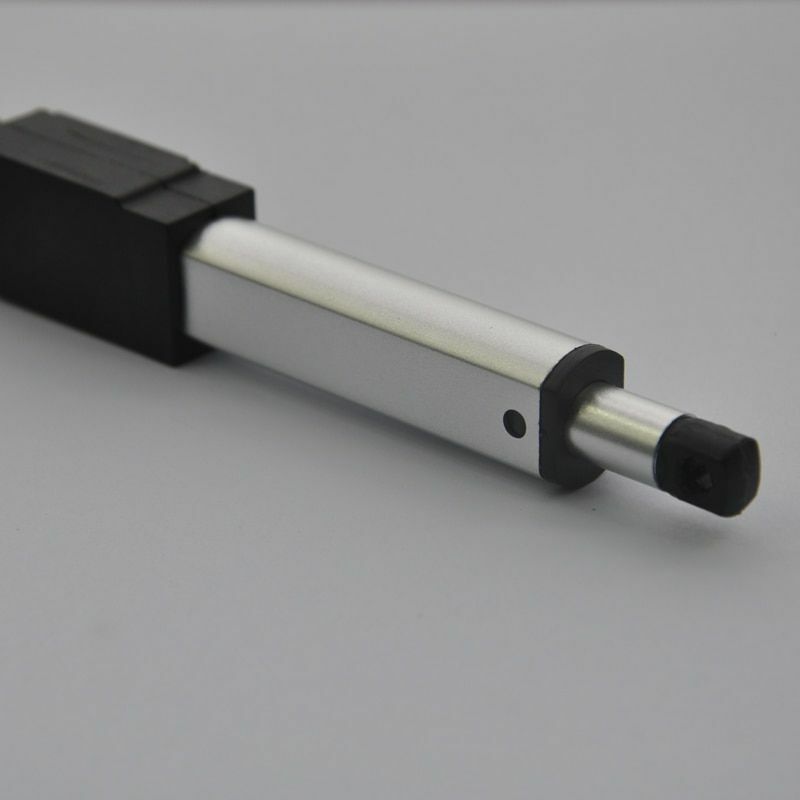

Micro Linear Electric Actuator 6V 12V Durable Compact Stroke Remote Control DC
Mini linear actuator. Although it is smaller,great ideal for any project where space or weight is at a premium.
We produce linear actuator,tv lifts,control box,handset,lifting column,electric desk. The spare part suppliers work with us for many years,with rich experienced team and ISO good quality control system that is why our quality and service makes customer happy.
We deeply appreicate your interest to our company.
Linear actuator spec:
1 Type linear actuator
2 Input 6V 12V DC
3 Max Load 188N=18KG=44LBS
4 Max Speed 150mm per second
5 Limited switch With
6 Duty cycle 25%
7 Inner tube material Aluminum alloy
8 Stroke length Max 100mm
9 Lmin and Lmax Normal Lmin=Stroke+54.5
10 Color Black
11 Operation temperature -26 ~ +65 degree
1 Lmin=54.5mm+Stroke
For example. If Sroke is 50mm,the normal Lmin is 54.5+50=104.5mm.
Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.
2 Stroke means the movement length of linear actuator.
3 Lmax=Lmin+Stroke=54.5+2*Stroke
For example. If Sroke is 50mm,the normal Lmin is 54.5+2*50=154.5mm.
Lmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.
Stroke 10MM Lmin=54.5+10=64.5MM,Lmax=64.5+10=74.5MM
Stroke 21MM Lmin=54.5+21=75.5MM,Lmax=75.5+21=96.5MM
Stroke 30MM Lmin=54.5+30=84.5MM,Lmax=84.5+30=114.5MM
Stroke 50MM Lmin=54.5+50=104.5MM,Lmax=104.5+50=154.5MM
Stroke 100MM Lmin=54.5+100=154.5MM,Lmax=154.5+100=254.5MM
|
1/ 6
Micro Linear Electric Actuator 6V 12V Durable Compact Stroke Remote Control DC
Save $3.00 USD
$43.00 USD
$46.00 USD
Speed(RPM)
6V 50MMS 19.2N
6V 150MMS 6.4N
12V 50MMS 19.2N
6V 30MMS 32N
12V 30MMS 32N
12V 5MMS 188N
6V 15MMS 64N
6V 7MMS 128N
Remote for 1pcs item
Remote for 2pcs item
12V 150MMS 6.4N
12V 9.5MMS 96N
6V 5MMS 188N
12V 7MMS 128N
12V 15MMS 64N
6V 9.5MMS 96N
Voltage(V)
30mm stroke
10mm stroke
21mm stroke
100mm stroke
50mm stroke
Quantity
