Metal Power Cylinder Low/High Temperature Metal Stirling Engine Boutique Model
100% Brand new & High quality
Package：1PC
Package：1PC

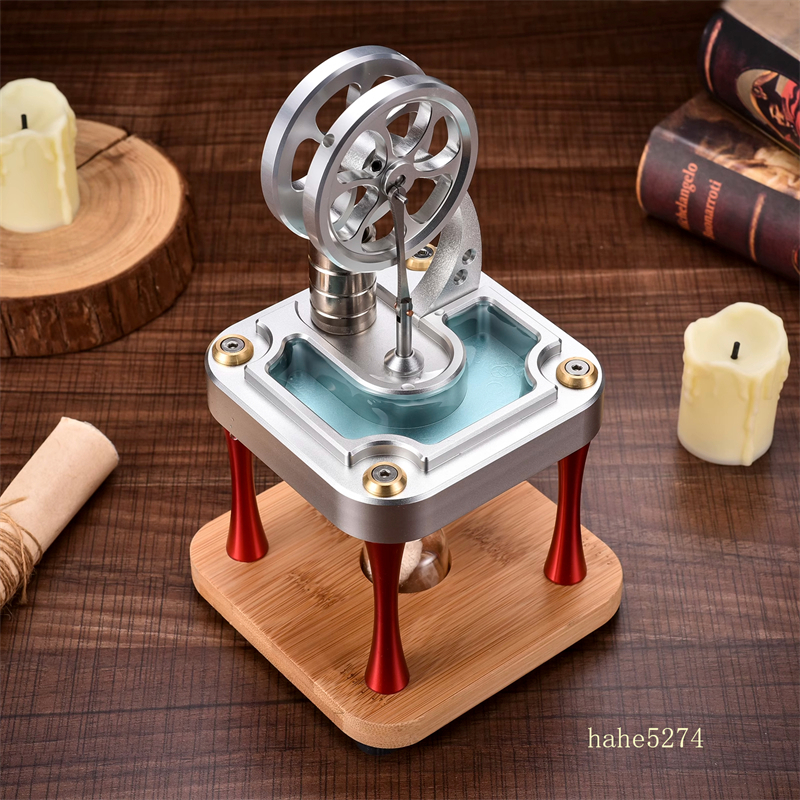

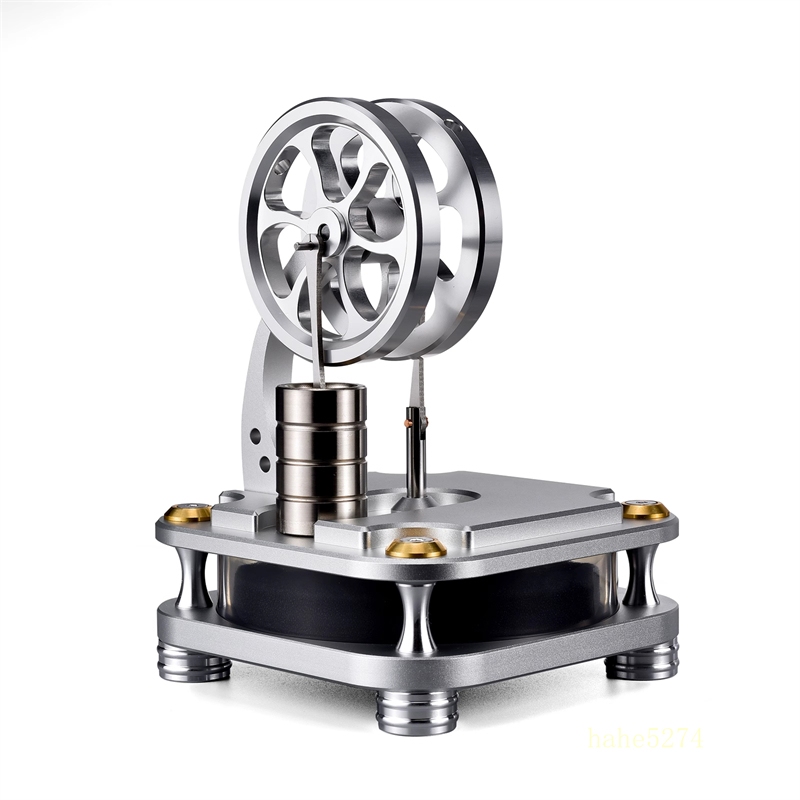

M16-C and M16-CF are two vertical high-temperature models developed on the basis of low-temperature, changed to alcohol lamp heating, flywheel size, cylinder material parameters, and connecting rod design are common with the low-temperature D16-C, M16-C in the main panel to do a sink, the machine can be added to the water tank when running or ice, which can be more quickly reduce the temperature of the cooling end of the machine, the purpose of doing so is also It is very obvious that the purpose of doing this is to further get the temperature difference we want, the high temperature Stirling does not have the large cylinders of the low temperature Stirling, so it is only possible to get enough power with enough temperature difference.

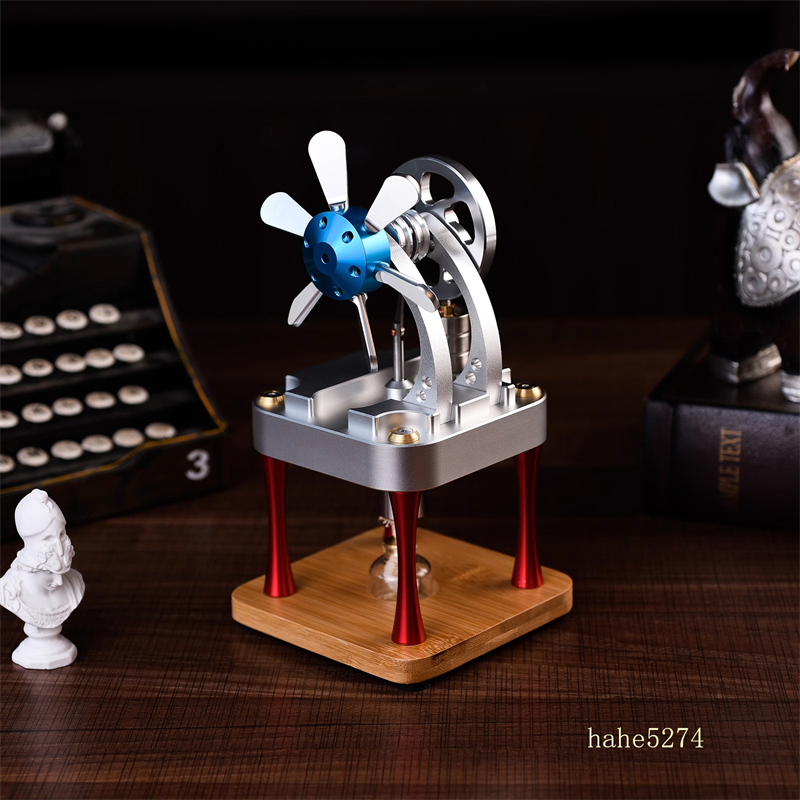

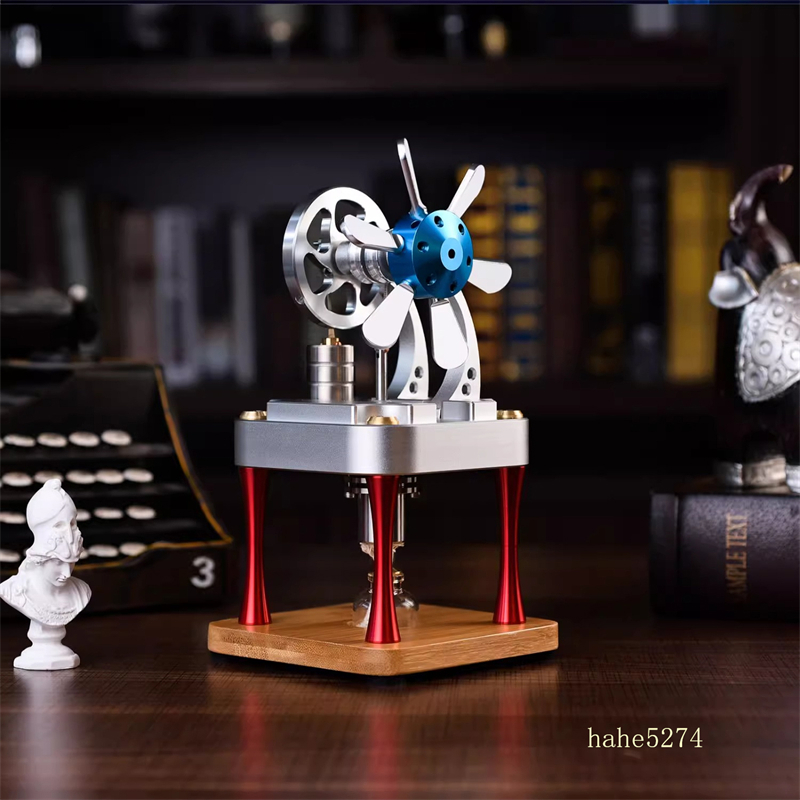

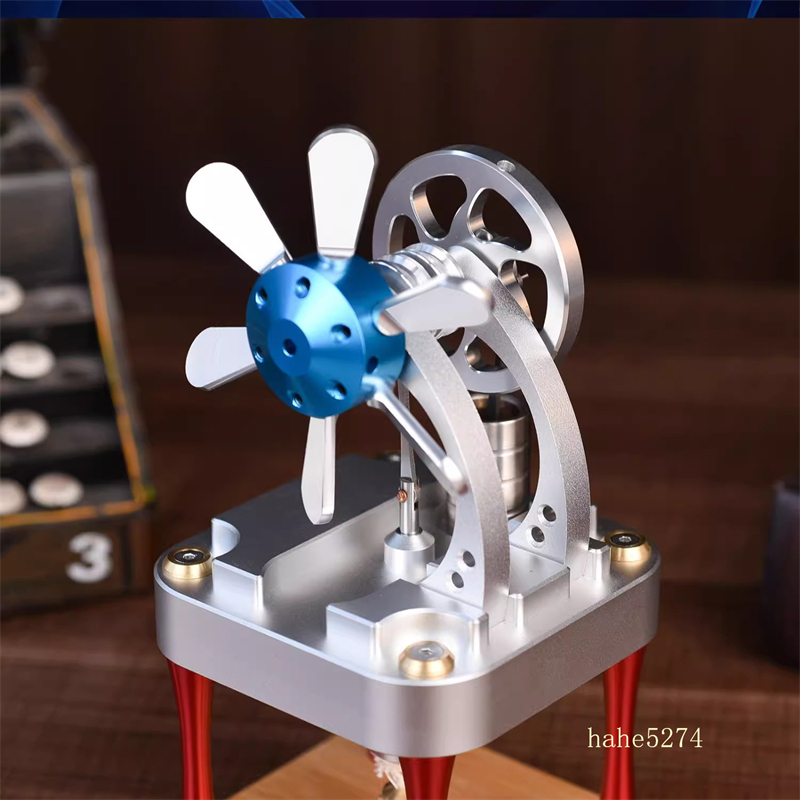

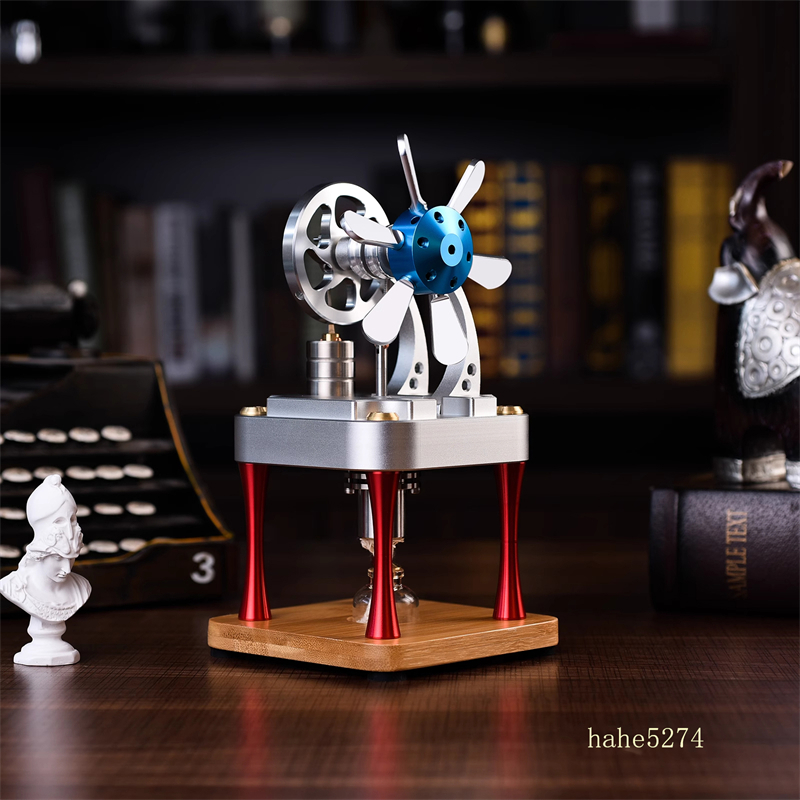

M16-CF model has no sink, instead of an aluminum alloy fan, the machine runs on the role of the fan, can take away some of the heat from the cooling end of the machine, of course, this design is mainly to provide a relatively different visual effect.
M16-CF because of the increase in the fan, changed to a double bracket design, seems to just play a supporting role of the two brackets, because the bottom of the large area connected to the motherboard, coupled with the aluminum alloy strong thermal conductivity, which can be a large portion of the heat transfer to the entire bracket, coupled with the fan's role in the disturbance of the flow, the heat dissipation effect is very obvious.

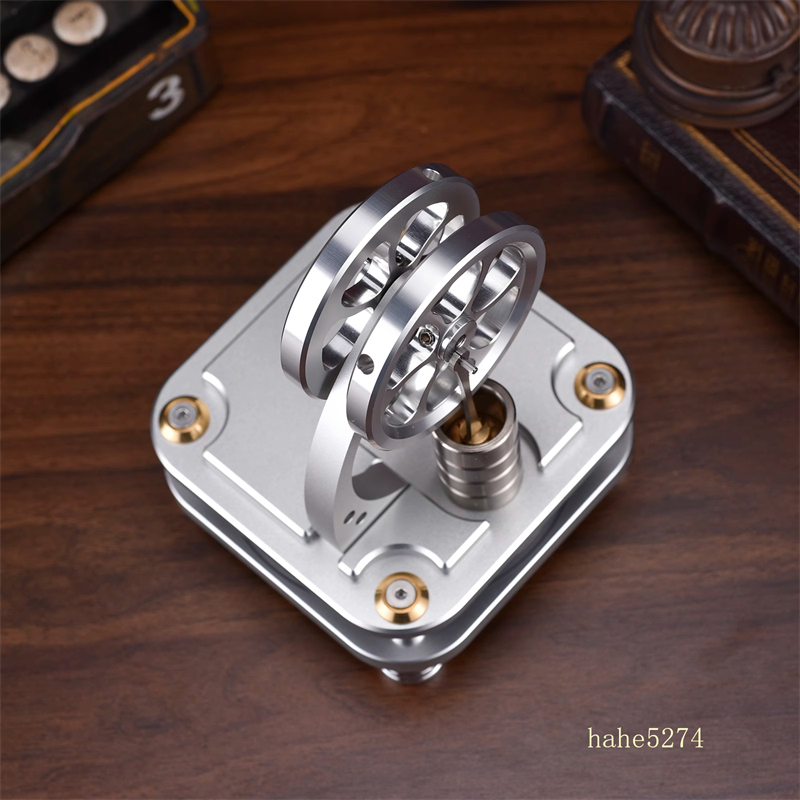

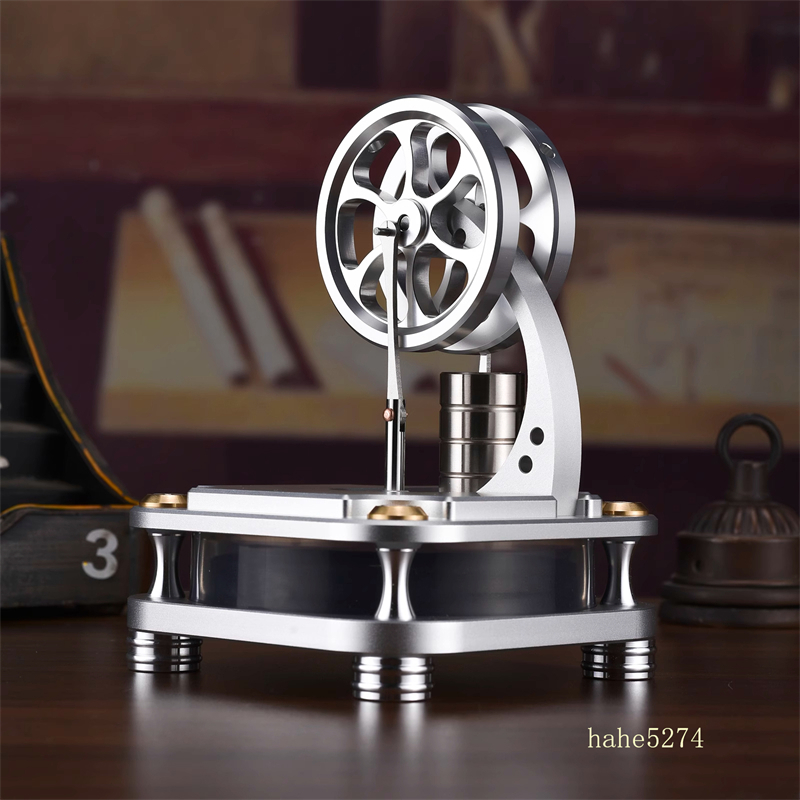

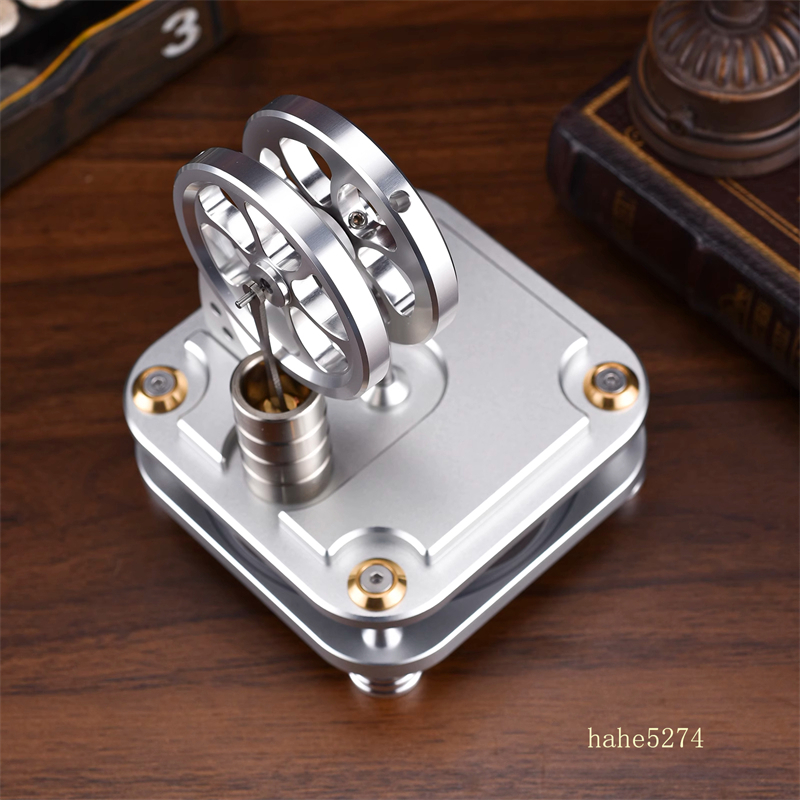

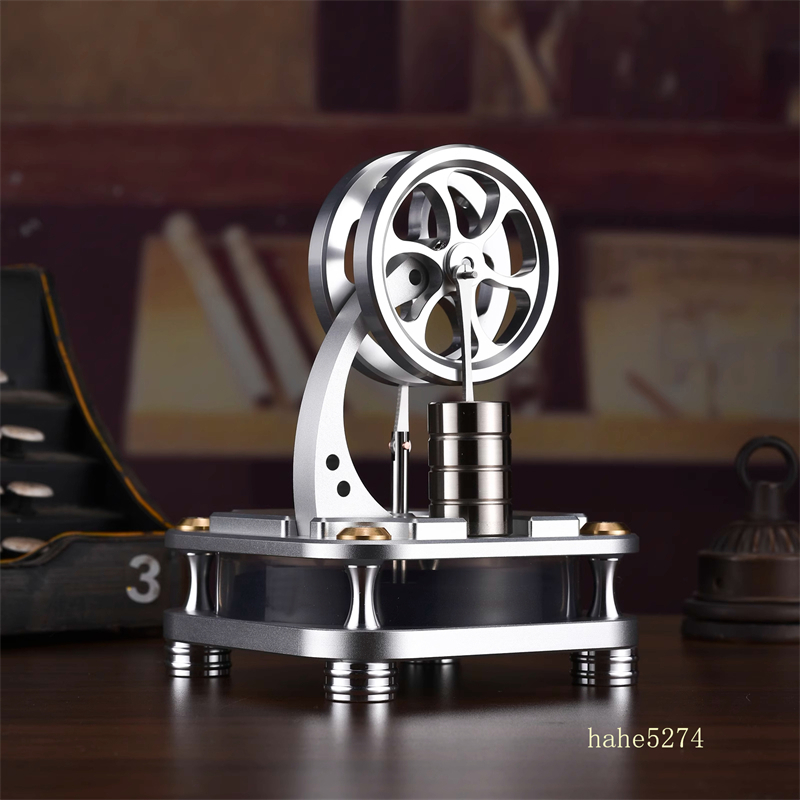

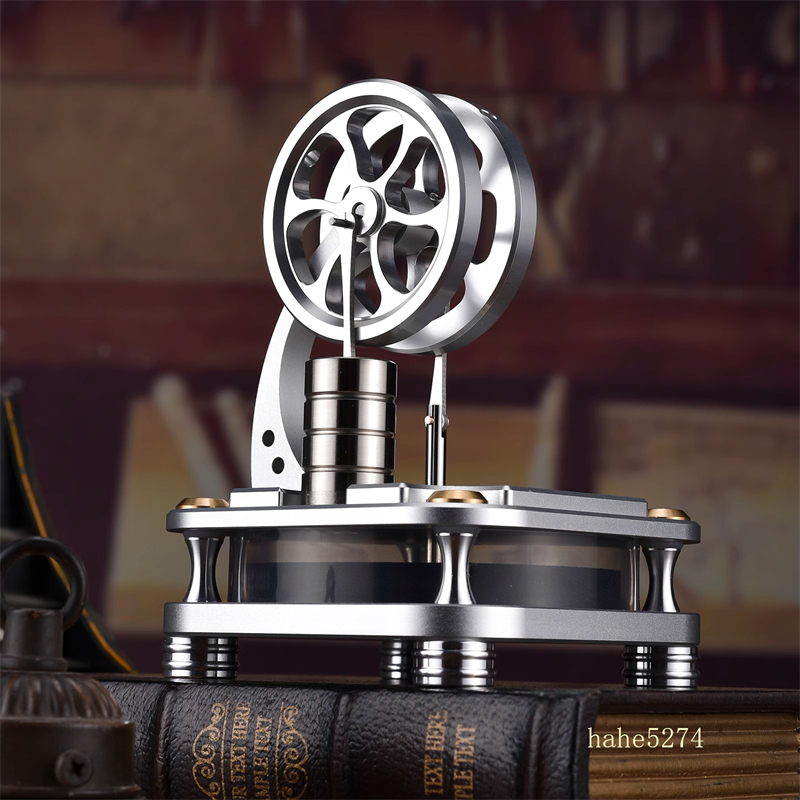

| Low Temperature D16-C | High temperature M16-C | High temperature M16-CF | |
| Size | 10.5*10.5*14cm | 10.5*10.5*20cm | 10.5*10.5*21.8cm |
| Net Weight(KG) | 0.53 | 0.85 | 0.97 |
| Weight(KG) | 0.7 | 0.98 | 1.15 |
| Base material | 6061 Aluminum Alloy | Phyllostachys edulis | Phyllostachys edulis |
| Startup method | Hot water above 80°C | Alcohol heating | Alcohol heating |
Generic component materials and parameters
| High temperature heating tube inner diameter | 20mm | High Temperature Heating Tube Material | 304 stainless steel |
| cryogenic heat exchanger cylinder Inner diameter | 95mm | M16-CF Fan Diameter | 102mm |
| Universal Flywheel Diameter | 65mm | Flywheel Material | 6061 Aluminum Alloy |
| High Temperature Pulley Diameter | 25mm | Pulley Material | 6061 Aluminum Alloy |
| Power Piston Diameter | 26mm | Power Piston Material | H59 brass/TC4 titanium alloy |
| Power Cylinder Sleeve Material | SUJ alloy steel | Bracket Material | 6061 Aluminum Alloy |
| High Temperature Main Body Materia | 6061 Aluminum Alloy | High Temperature Ventilation Piston Material | 6061 Aluminum Alloy |
| Low Temperature Base Plate/Panel. | 6061 Aluminum Alloy | Fan Material | 6061 Aluminum Alloy |
